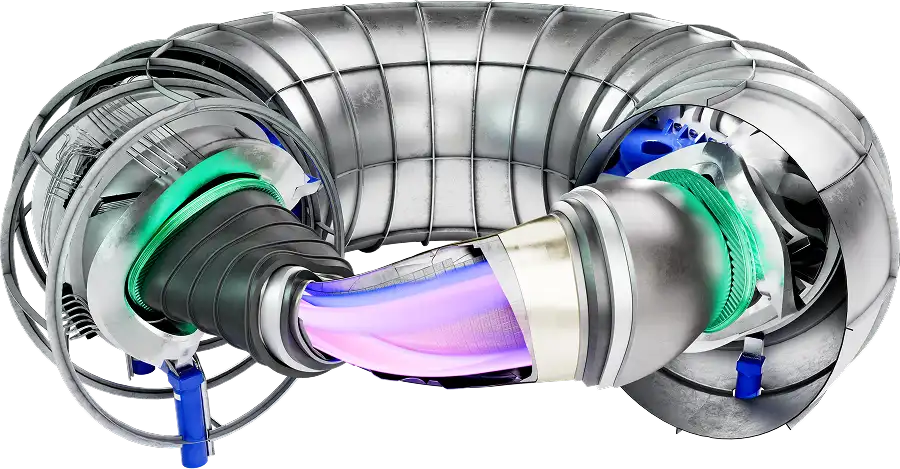

How we plan to build a Fusion Power Plant

Fusion energy involves bringing together two lighter nuclei to create a heavier one. The energy released during that process can be captured and then used to power homes, industries and entire countries.

Fusion energy will be clean, abundant and safe.

Plasma Configuration
001

Fusion Energy

The Building Blocks:

002

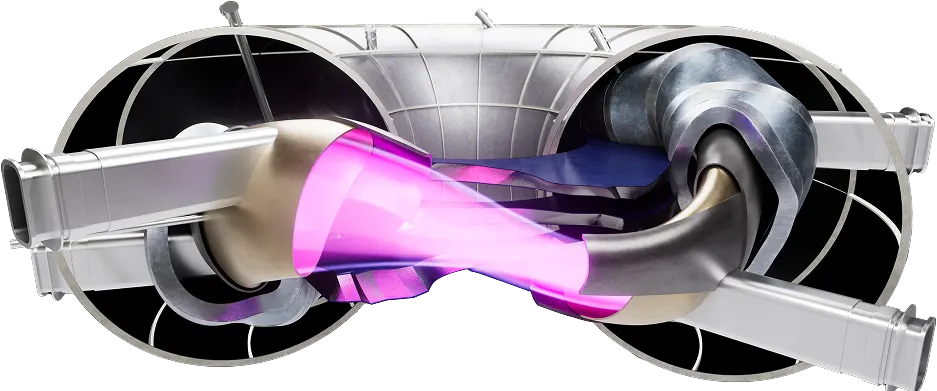

QI Stellarators

QI Magnetic Field Contours

Proxima Fusion is developing quasi-isodynamic (QI) stellarators, where toroidal currents cancel out to zero, resulting in uniquely robust features. W7-X is an invaluable prototype and testbed for this concept.

We believe that QI stellarators offer the clearest path to putting fusion on the grid.

A key benefit of QI stellarators is the complete absence of plasma currents, and hence current-driven instabilities, which result in disruptions in other tokamak and stellarator concepts.

QI stellarators also offer a proven heat exhaust concept: the island divertor, which was demonstrated on W7-X and W7-AS at the Max Planck Institute for Plasma Physics.

003

Superconductors

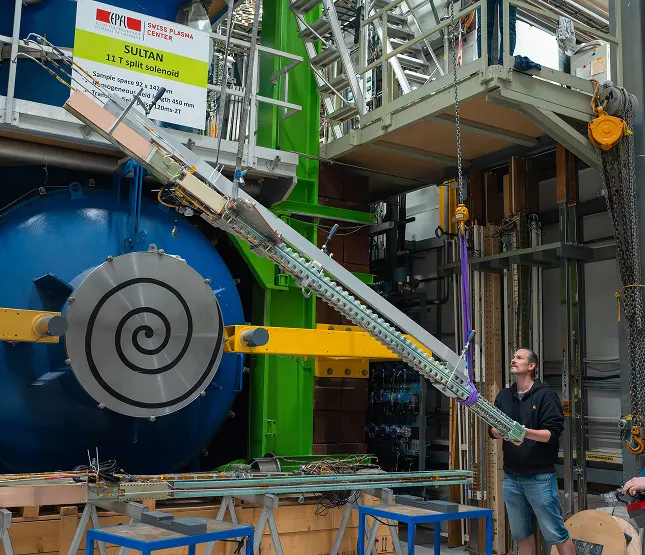

High Temperature Superconductors (HTS)

Superconducting materials have zero electrical resistance. They have been revolutionizing magnet technology for decades.

Conventional superconductors require extremely low temperatures, near absolute zero. Modern “High-Temperature Superconductors” (HTS) can reach higher temperatures and magnetic field strengths while also having significantly wider design space, leading to less strict requirements.

HTS technology is at the forefront of leading tokamak developments. It is equally attractive for stellarators, where we are less constrained by current-driven operational limits.

004

Simulation-first

Virtual Prototype Environment


It’s too expensive to build a thousand power plants and hope that one of them works.

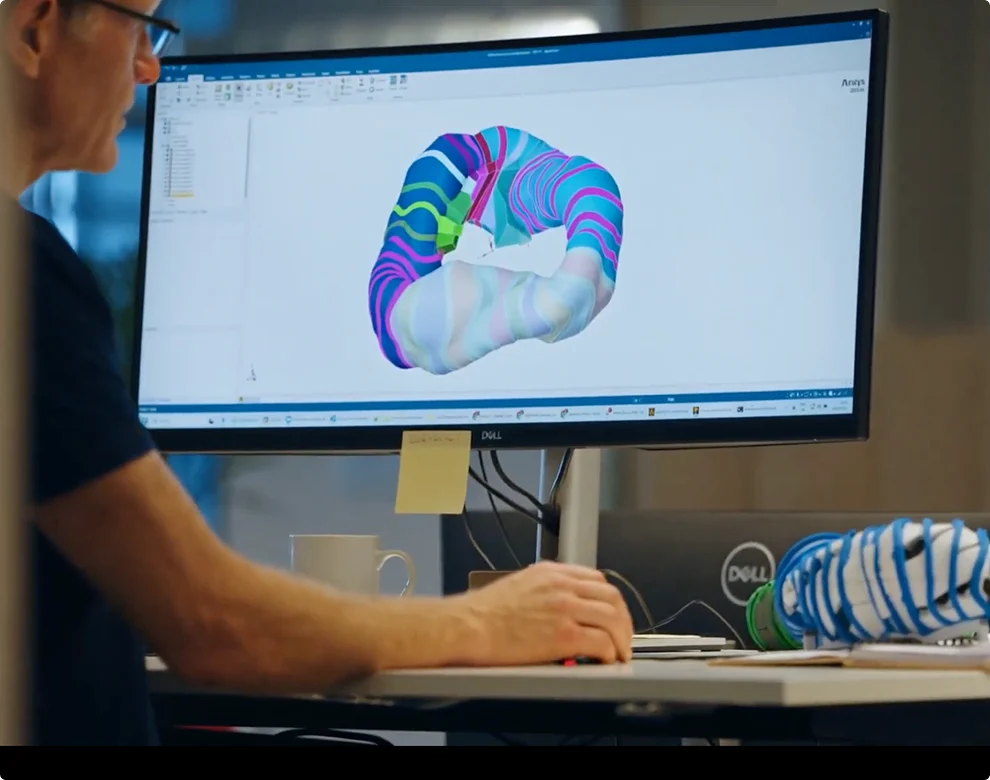

Computational optimization is central to modern stellarators. We leverage advanced techniques to iterate faster on our designs, before building them in the real world.

We develop reduced models, using Physics-Informed Neural Networks and other machine learning techniques, to filter through potential design hypotheses and construct surrogate models for testing.

We consider stellarator optimization to be a cross-disciplinary physics, computational and engineering challenge, requiring the assessment of many scientific and technological trade-offs.

Stellarators

&

Tokamaks

Stellarators and Tokamaks differ in their tradeoffs of design vs. operational complexity: stellarators, whilst harder to design, are easier to operate.

Stellarators can be designed to run stably in continuous operation.

Stellarators have far more degrees of freedom, meaning that we can optimize them in remarkable ways, whereas tokamak designs are relatively unflexible.

Tokamaks have so far been at the forefront of fusion science. However, stellarators are now feasible to design and build, leading us into a new era.
